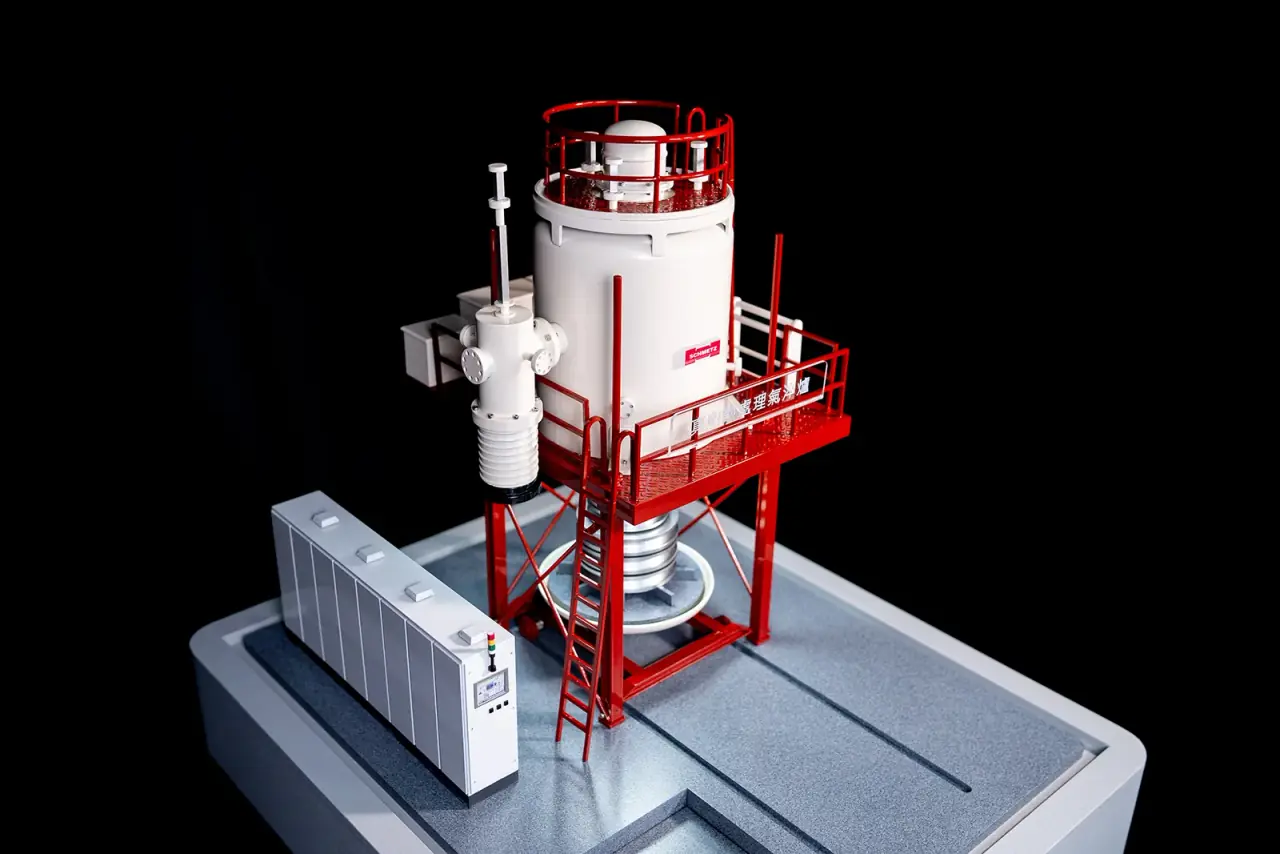

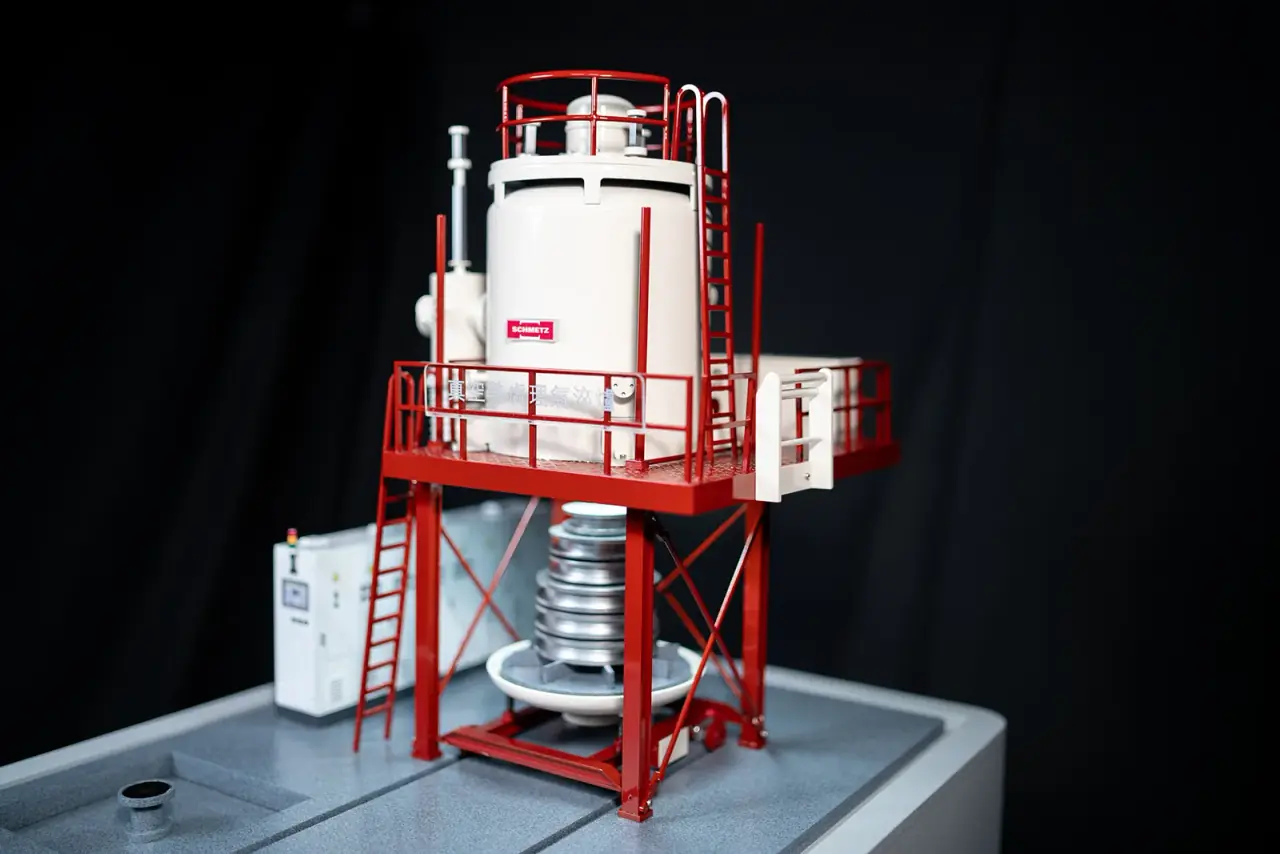

Pan-Folks International Corporation | Vacuum Heat-Treatment Gas-Quenching Furnace Model

Direct Reconstruction × No Reverse Engineering

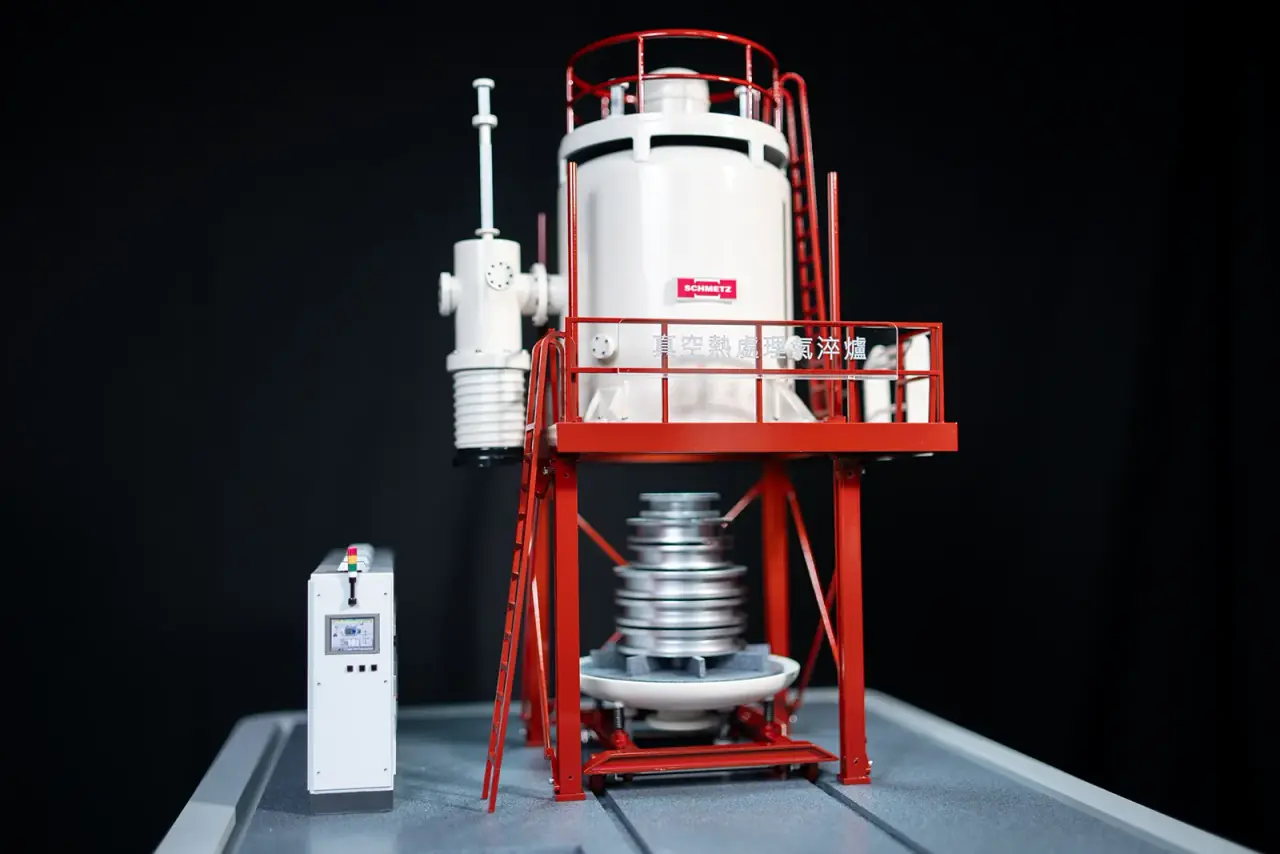

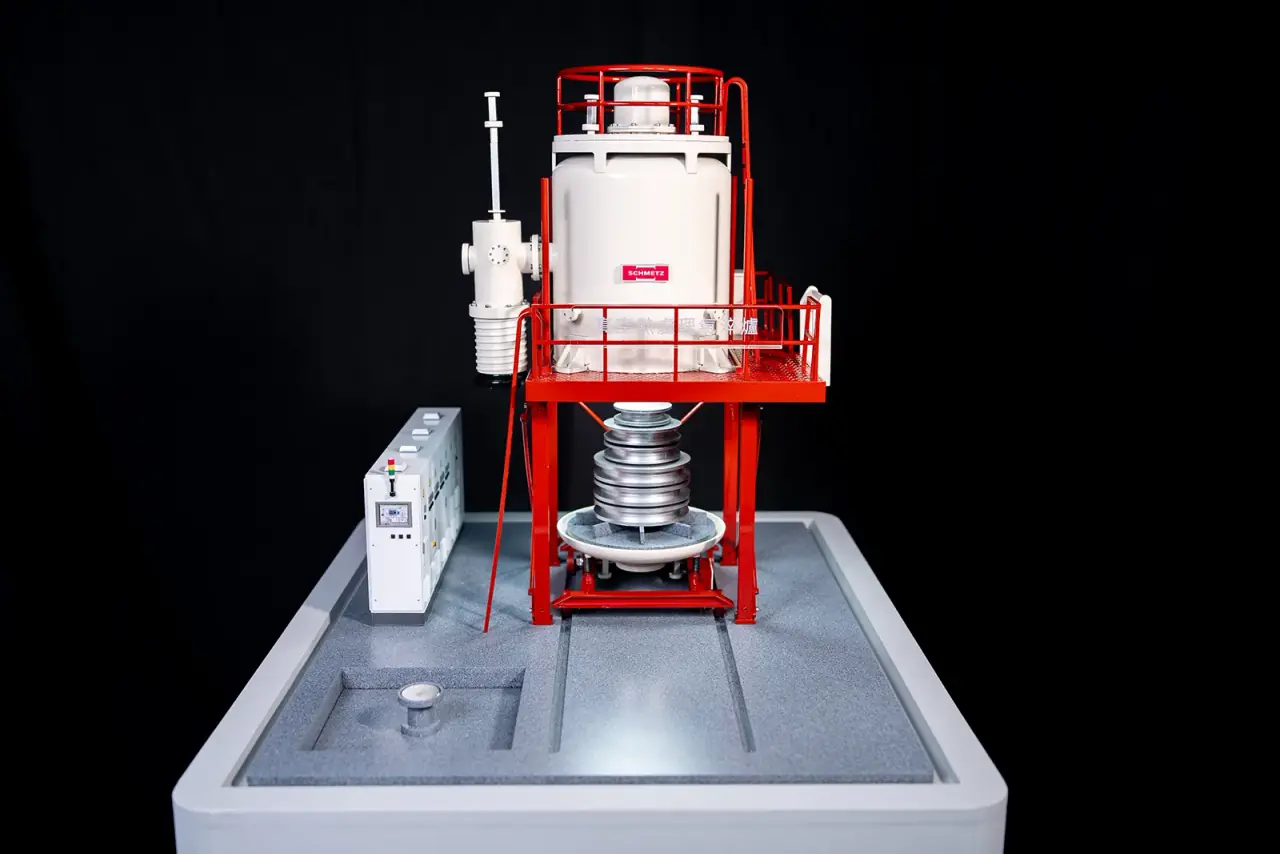

The vacuum heat-treatment gas-quenching furnace was reconstructed from original equipment photographs and the appearance of a previously made model. These references supported drawing and fabrication without a complex reverse-engineering process, retaining the equipment's proportions and industrial details.

Scaled Structure × Recognizable Functions

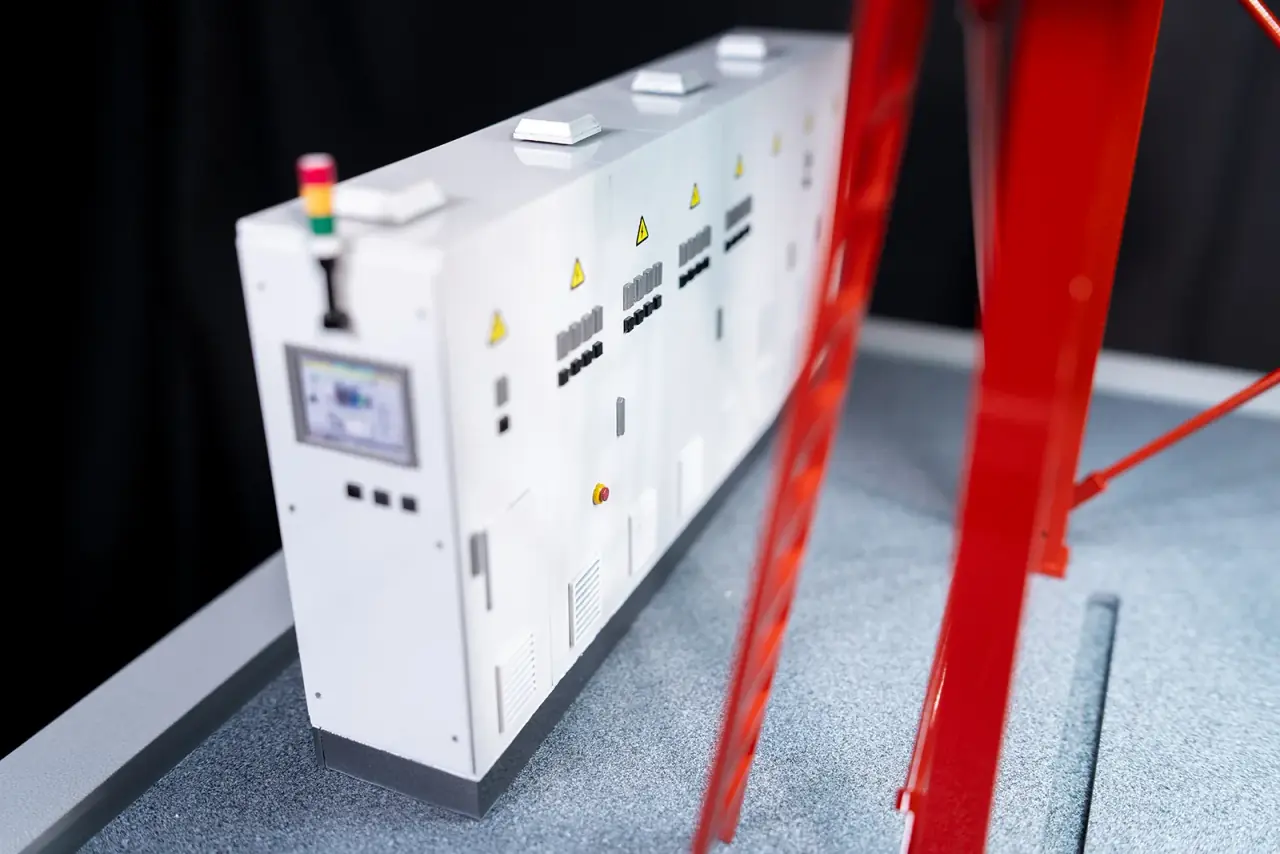

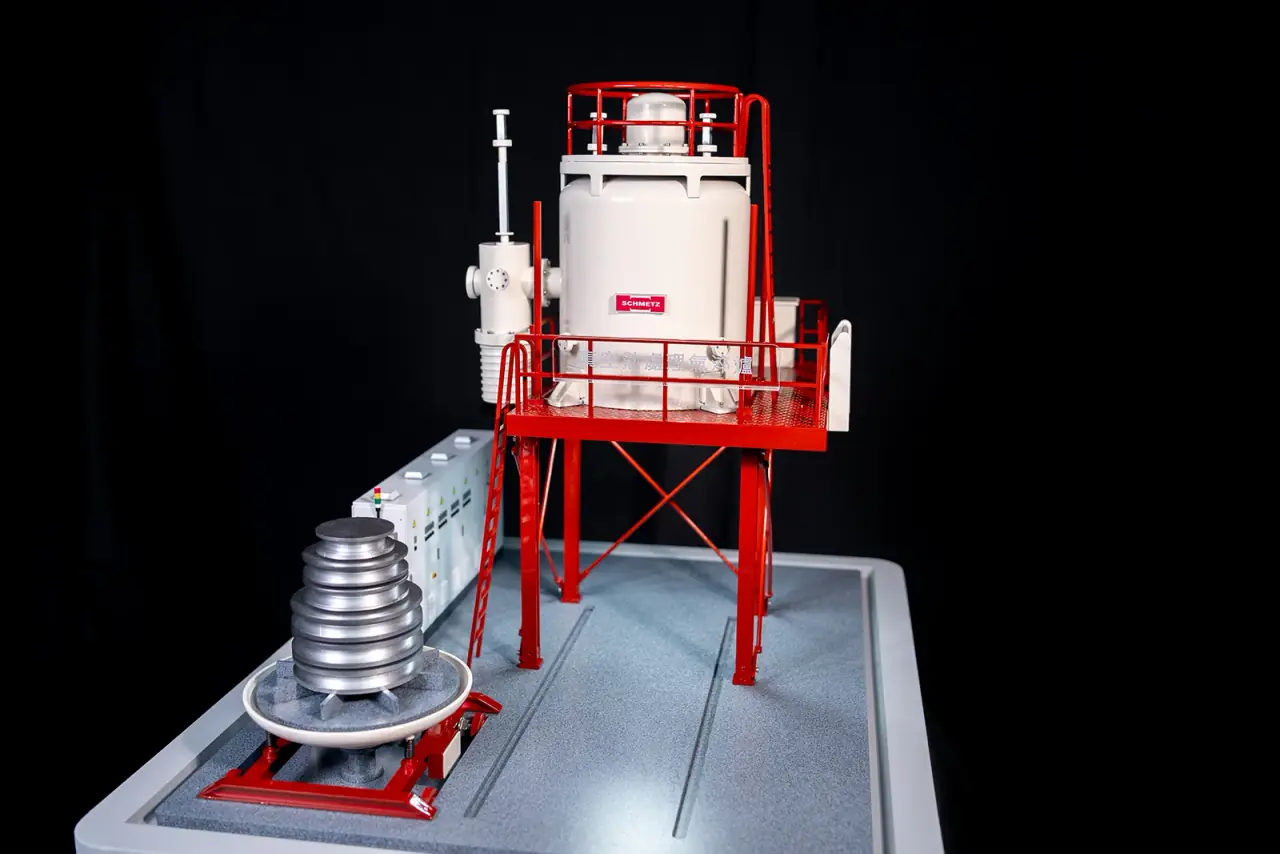

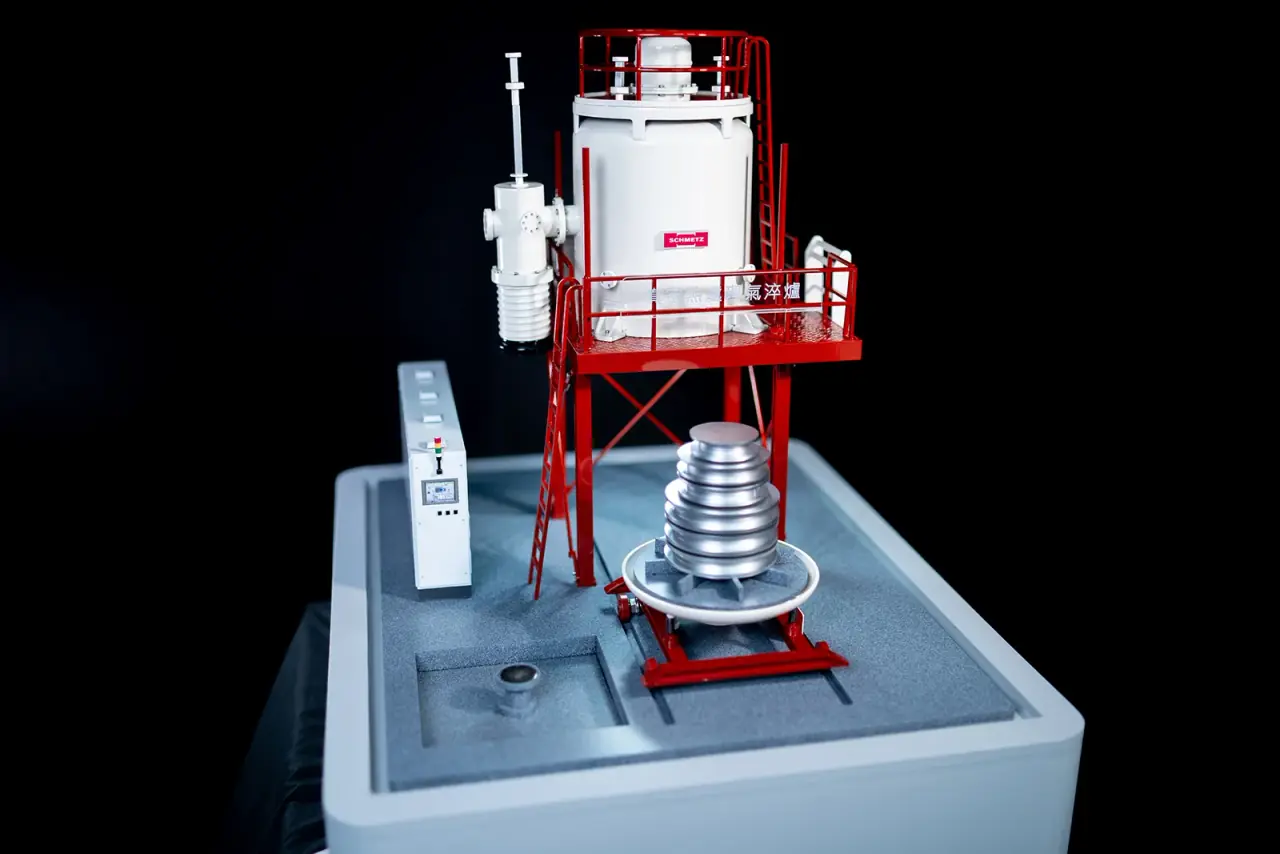

3D printing formed the basis of the model, reproducing the equipment's outlines and industrial features. Major functional areas remain recognizable at reduced scale.

Baked-Paint Finish × Metallic Appearance

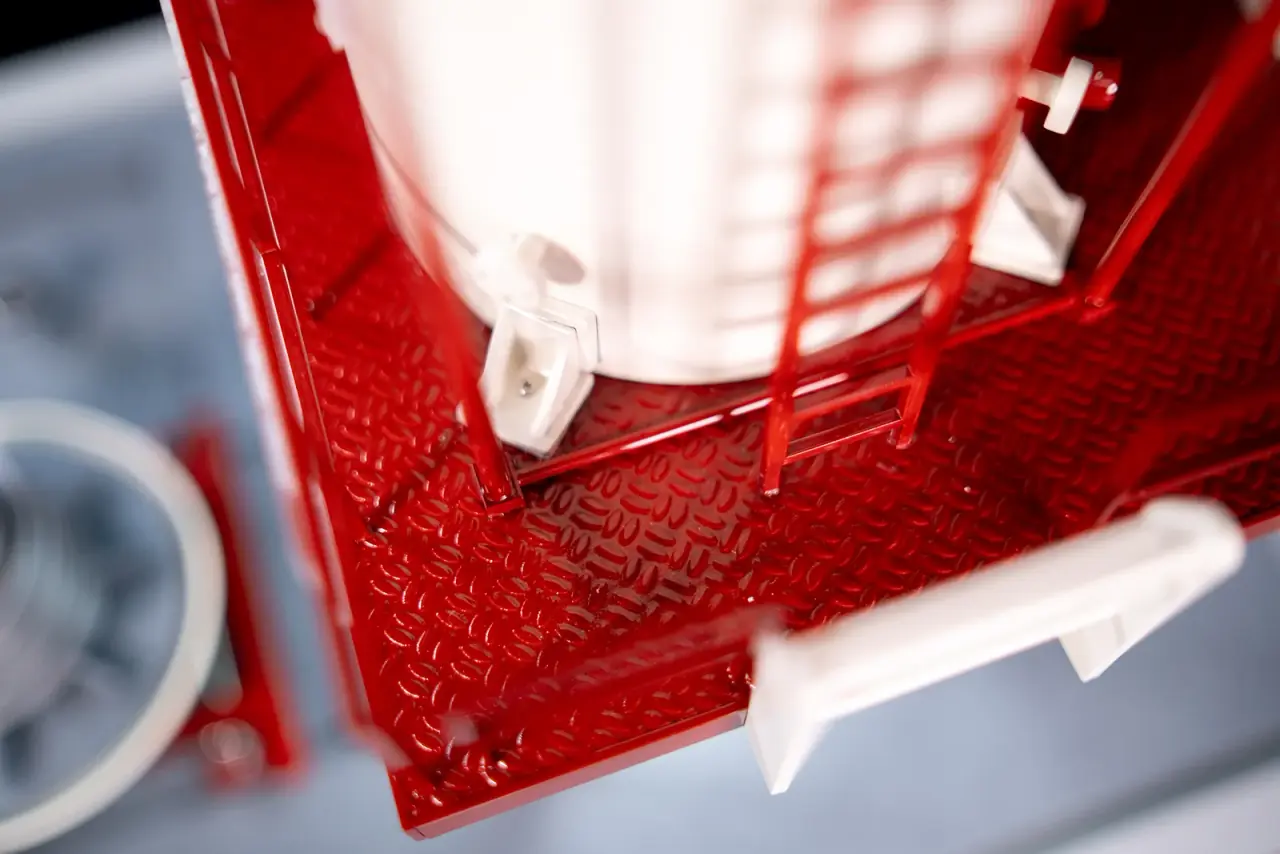

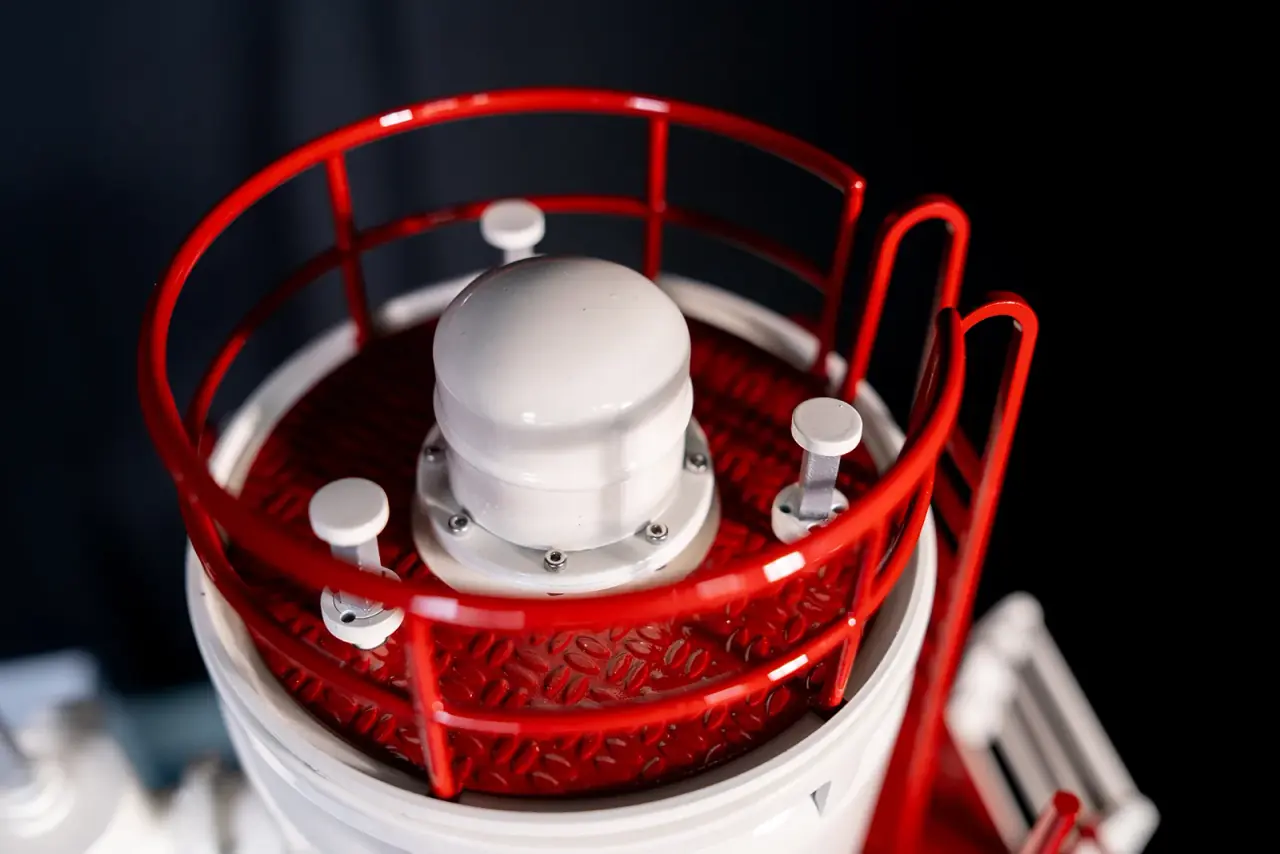

A baked-paint surface finish reproduces the original equipment's metallic sheen and industrial texture, while supporting a durable, carefully finished display.

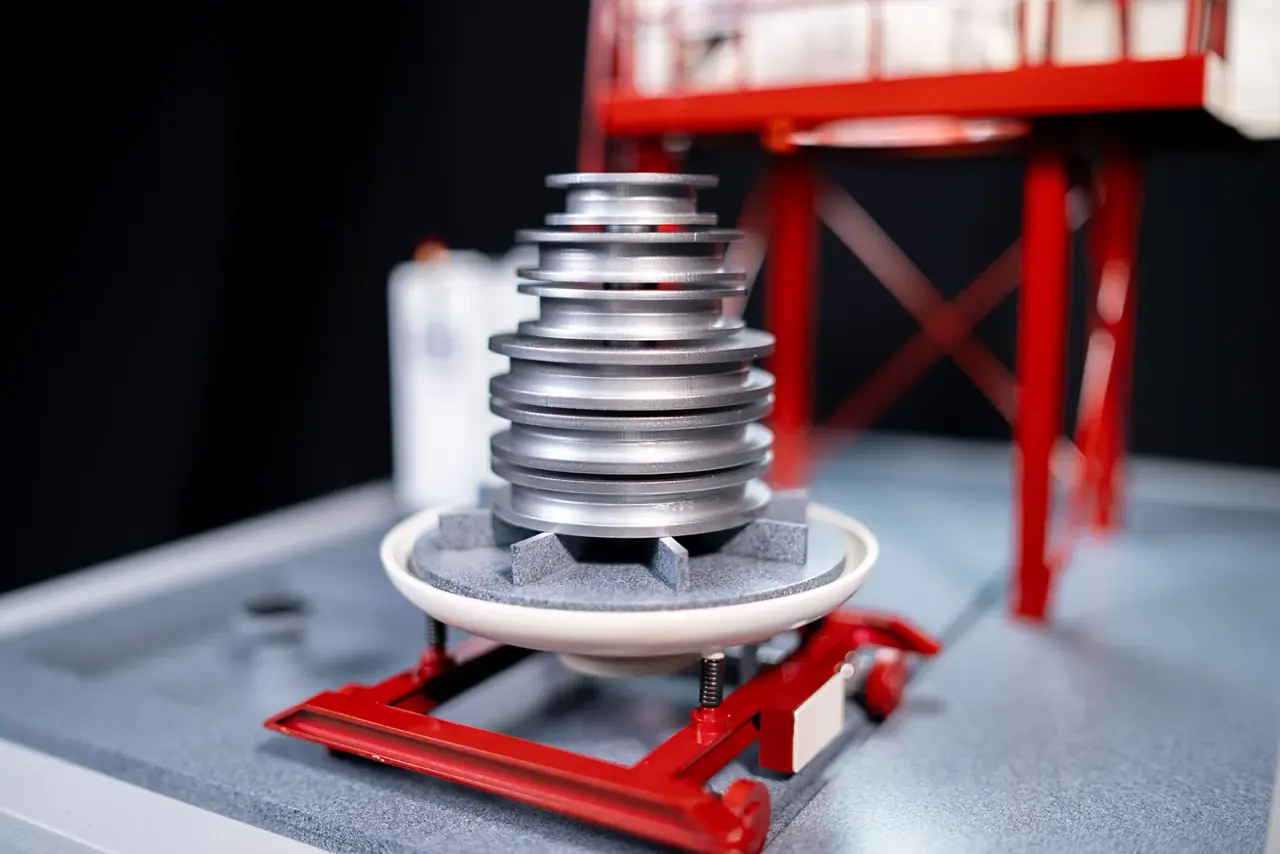

Moving Modules × Portable Demonstrations

Moving modules help explain equipment operation at exhibitions, client presentations and training sessions. The scale model makes an otherwise large furnace easier to transport and communicate.
